Wavelength Calibration Sources


CNI new launched Hg-Light wavelength calibration light source for wavelength calibration and spectral line calibration of spectroscopic equipment. The spectral range is from 253~1700nm in the UV-Visible band. The easily identifiable mercury and argon transmission spectral lines are printed on the housing for fast and reliable wavelength calibration. Stable, long life, cost effective and easy to handle.

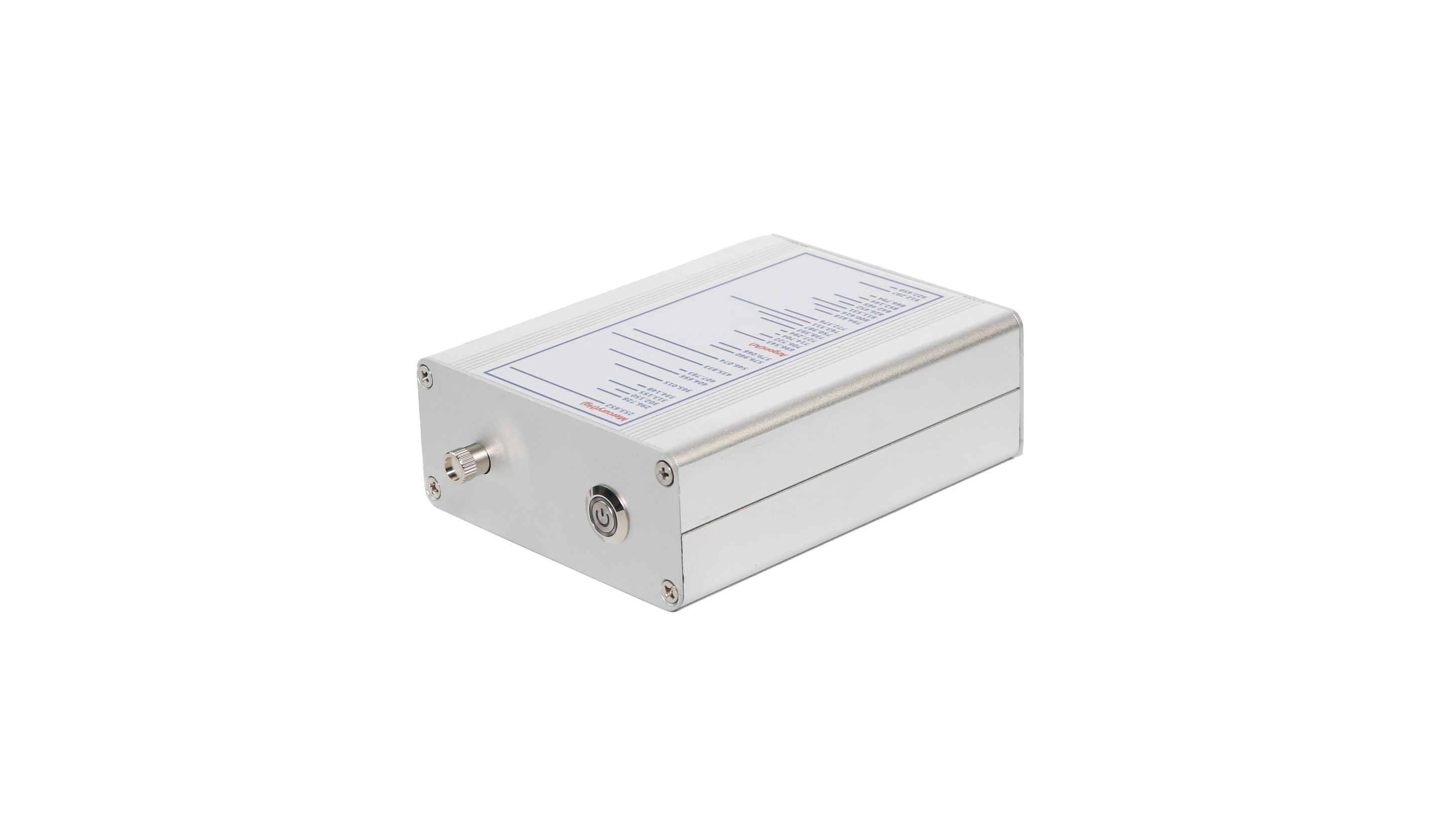

  ■ Wavelength Calibration Sources: Hg-Light


Features:
  • SMA905 connector (FC connector optional)

  • Light source life>4000h

  • Spectral range: 253~1700nm

  • Can be used as a wavelength calibration light source

  • Easy to operate


 ■ Specifications

Model Hg-Light
Spectrum Range 253 nm - 1700 nm
Dimensions (mm) 120.5×88×38 mm
Input Voltage 220VAC
Electricity consumption 15mA@220V
Lifetime of Bulb >4000 h
Warm-up Time <1 min
Connector SMA905/ FC (optional)


 ■ Standard Spectrum



The wavelength of a fiber optic spectrometer will shift slightly over time and with changes in the environment. If wavelength accuracy is important to your application, consider choosing a Hg-Light wavelength calibration light source to periodically adjust the wavelength and adjust the fiber optic spectrometer.



Standard Spectral Curve


Dimensions
