Fiber Coupling Laser at 639 nm |
|
|
|
High Power Fiber Coupled Diode Laser
System at 639-980 nm |
|
|
|
The
FC-W-xxxA series
(Fiber
Coupling Laser System)
have
integrated laser diode, fiber
coupling optics, laser power supply, LD current
and temperature control in ONE box. Its
compact dimension and convenient functions, such
as power adjustment, temperature control, LED
display etc, make
it very suitable for pumping, scientific
research, industrial and medical applications. |
|
|
|
|
Specification |
|
Model |
FC-W-xxxA |
|
Available
Wavelengths (nm) |
639 |
793 |
808 |
810 |
878.6 |
880/885 |
915 |
938 |
940 |
976 |
980 |
|
Central Wavelengths Tolerance (nm) |
±4 |
±3 |
±3 |
±10 |
±0.5 |
±3 |
±5 |
±3 |
±10 |
±3 |
±10 |
|
Available
Power (W) |
3, 5, 7 |
40 |
20, 30, 40, 50 |
20, 40 |
30, 50 |
25, 30, 50 |
|
Red Pilot Light (P) |
/ |
/ |
/ |
/ |
P |
/ |
/ |
/ |
P |
/ |
P |
|
Fiber
Core Diameter (µm) |
400 |
|
Fiber
NA |
0.22 |
|
Fiber
Connector |
SMA905 |
|
Fiber
Length (m) |
2 |
|
Output Power |
0-100%, adjustable by knob |
|
Operating Mode |
CW,
TTL or Analog on request |
|
LED Display |
Diode
current |
|
LD
Temperature Control Range ( ℃) |
15~30, adjustable by knob |
|
Expected Lifetime (hours) |
10000 |
|
Input Power |
90-264VAC,
50 to 60 Hz |
|
Operating Temperature ( ℃) |
10~40 |
|
Cooling Way |
by air |
|
Warranty time |
1 year |
|
|
|
FC-W-xxxA Package Dimensions (mm) |
|
Weight: 7.6kg |
|
|

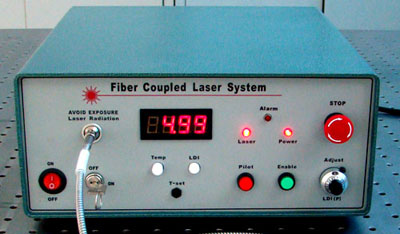

Front Panel |
|
 |
|
|
Fiber Collimator |
|
These collimators are designed to connect onto the end of
an FC/PC or SMA905 connector and contain an AR-coated aspheric lens. The
distance between the aspheric lens and the tip of the FC-terminated
fiber can be adjusted to compensate for focal length changes or to
recollimate the beam at the wavelength and distance of interest.
Fixed FC or SMA Fiber Collimators
Adjustable Fiber Collimators |
|
|
|
|
|
