High Power
Fiber Coupling DPSS Laser |
|
High Power
532 nm Fiber Coupled Laser System |
|
![](picture/FC-W-532.jpg)
The
FC-W-xxxS series
(Fiber
Coupling Laser System)
have integrated DPSS laser, fiber coupling optics, laser power supply, LD
current temperature control in ONE box. Its
compact dimension and convenient functions, such as power adjustment, LED display etc, make it very suitable for pumping,
scientific research, industrial and medical applications. |
|
Specifications |
Parameter |
FC-W-532 |
Available
Wavelengths (nm) |
532±1 |
Available
Power (W) |
4, 5, 10, 15, 18 |
Red Pilot Light |
Available on request |
Fiber
Core Diameter (µm) |
400 |
Fiber
NA |
0.22 |
Fiber
Connector |
SMA905 |
Fiber
Length (m) |
2 |
Output Power |
0-100%, adjustable by knob |
Operating Mode |
CW,
TTL or Analog on request |
LED Display |
Diode
current |
Expected Lifetime (hours) |
10000 |
Input Power |
90-264VAC,
50 to 60 Hz |
Operating Temperature ( ℃) |
10~40 |
Cooling Way |
by air |
Warranty time |
1 year |
|
|

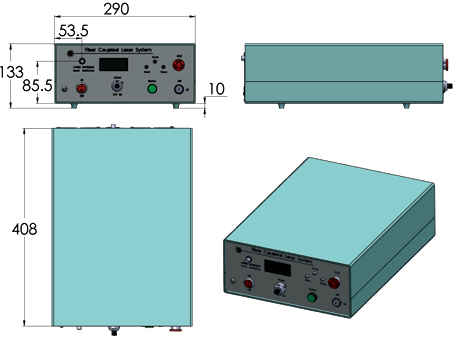

FC-W-xxxS Package Dimensions (mm) |
![](picture/FC-W-532drawing.jpg)
Weight: 10.78kg |
|
![](picture/FC-W-532-front.jpg) |

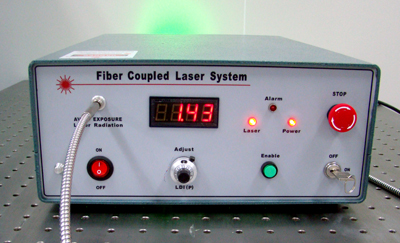

Front Panel |
|
Fiber Collimator |
![](picture/fiber%20collimator.jpg)
These collimators are designed to connect onto the end of
an FC/PC or SMA905 connector and contain an AR-coated aspheric lens. The
distance between the aspheric lens and the tip of the FC-terminated
fiber can be adjusted to compensate for focal length changes or to
recollimate the beam at the wavelength and distance of interest.
Fixed FC or SMA Fiber Collimators
Adjustable Fiber Collimators |
|
|
