532nm
laser>>MLL-S-532 |
|
MLL-S-532/1~300mW - up to 300mW,
532 nm green DPSS laser, low noise, small size, good
sealing, IP68 |
|
 |
Specification |
|
Model |
MLL-S-532-A
(Harsh condition) |
MLL-S-532-B
(Normal condition) |
Wavelength (nm) |
532±1 |
Operating mode |
CW |
Output power (mW) |
>1,5,10,20,…,300 |
Power stability (rms, over 4 hours) |
<1%,<3%,<5% |
Transverse mode |
TEM00 |
M2 factor |
<1.2 |
Beam diameter at the aperture( 1/e2 ,mm) |
0.7±0.05 |
Beam divergence, full angle (mrad) |
<1.5 |
Polarization ratio |
>100:1 Horizonta±5 degree (Vertical Optional) |
Pointing stability after warm-up (mrad) |
<0.05 |
Pointing stability Over Temp. (µrad/°C) |
<8 |
Noise of amplitude (rms, 20Hz~20MHz) |
<1%,<0.5% |
Warm-up time (minutes) |
<5 |
Beam height from base plate (mm) |
19 |
Power Consumption(W) |
<40 |
Shock Tolerance(6ms) |
7g laterally,15g vertically |
IP Rating |
IP67 |
IP65 |
Power supply(90-264VAC or 5VDC) |
PSU-H-FDA |
PSU-III-FDA |
PSU-III-OEM-97 |
Operating temperature (℃) |
0-60 |
10-35 |
Max. Heat Dissipation of Head(W) |
10W@50℃ |
4W@25℃ |
Modulation |
TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option |
Expected lifetime (hours) |
10000 |
Warranty |
1 year |
Datasheet |
 |
|
|
Features |
Applications |

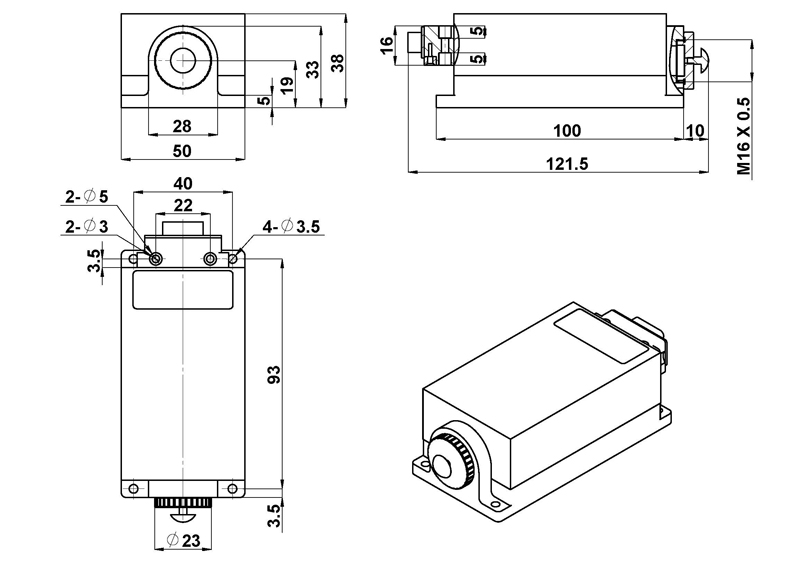

Drawings |
-
Output
Power up to 300mW
-
TEC cooling
system
-
Lightweight, compact design
-
Wide
operating temperature
-
Working
under the pressure of 0.02kPa
-
Superior
beam quality
-
Good
sealing
-
Low noise
(<1%, <0.5%)
-
Best
reliability and lifetime
-
Low cost
and easy operating
|
-
DNA
sequencing
-
Flow
cytometry
-
Cell
sorting
-
Optical instrument
- Spectrum
analysis
- Laser
printing
-
Chip
inspection
-
Physics experiment
|
|
Options |
|
|
|
