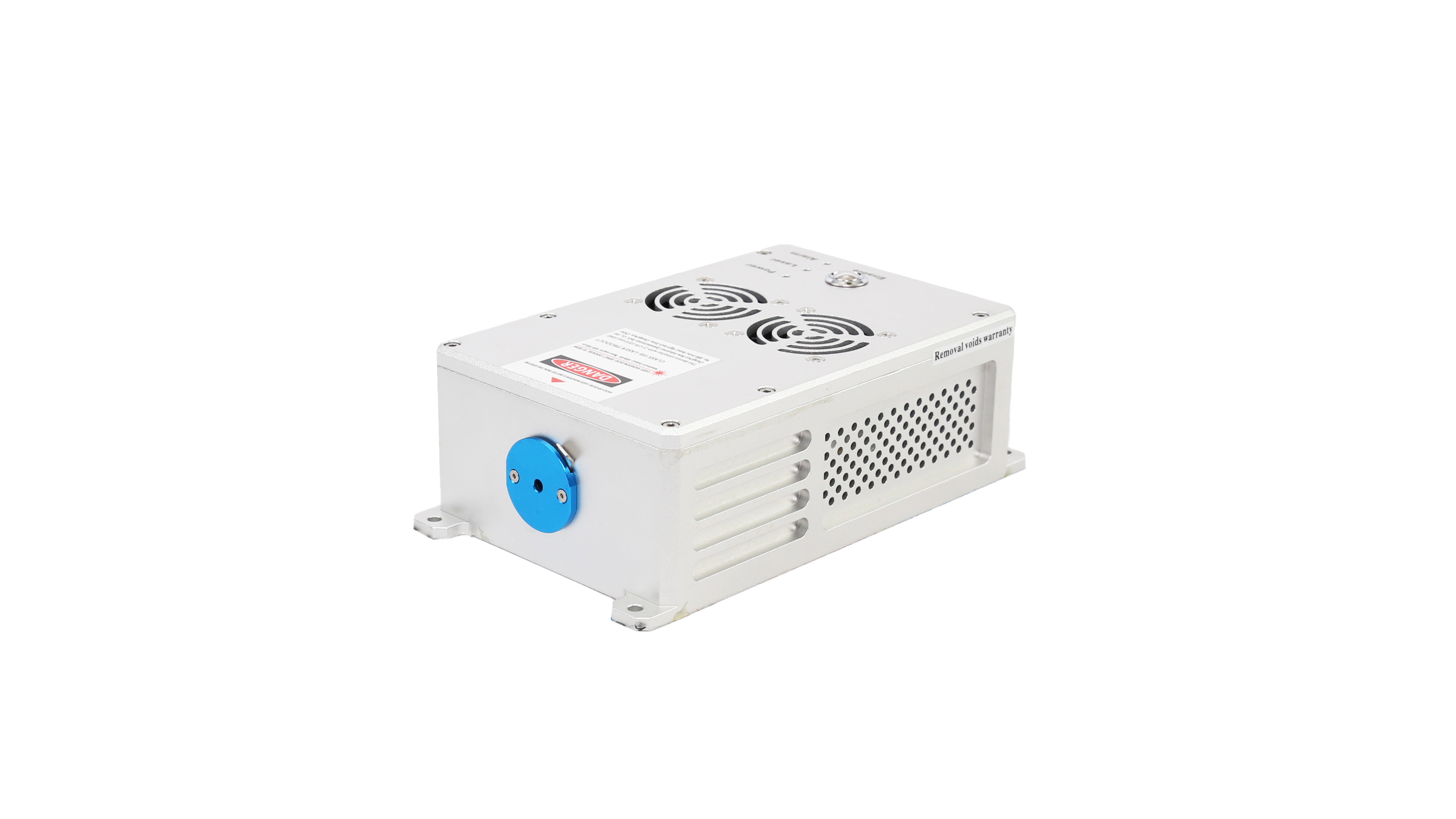

Picosecond Pulsed Diode Laser

Picosecond pulsed diode laser features with integrated electronics, narrow pulse duration, high repetition frequency and easy operation. It is widely used in fluorescence excitation, time resolve spectrum, high sensitive absorption spectroscopy, etc.

Specifications

Model	Output power	Rep. rate (MHz)	Pulse duration (ps)	Data sheets
MDL-PS-375	1~50 mW	0.1~20	200-1000
MDL-PS-400	1~100 mW	0.1~80	100-1000
MDL-PS-405	1~100 mW	0.1~80	100-1000
MDL-PS-445	1~60 mW	0.1~80	100-1000
MDL-PS-447	1~60 mW	0.1~80	100-1000
MDL-PS-450	1~60 mW	0.1~80	100-1000
MDL-PS-488	1~50 mW	0.1~20	100-1000
MDL-PS-520	1~30 mW	0.1~80	100-1000
MDL-PS-633	1~50 mW	0.1~80	100-1000
MDL-PS-635	1~50 mW	0.1~80	100-1000
MDL-PS-637	1~50 mW	0.1~80	100-1000
MDL-PS-640	1~50 mW	0.1~80	100-1000
MDL-PS-642	1~50 mW	0.1~80	100-1000
MDL-PS-655	1~50 mW	0.1~20	100-1000
MDL-PS-660	1~50 mW	0.1~20	100-1000
MDL-PS-785	1~50 mW	0.1~80	100-1000
MDL-PS-808	1~60 mW	0.1~80	100-1000
MDL-PS-852	1~30 mW	0.1~80	100-1000
MDL-PS-905	1~30 mW	0.1~80	100-1000
MDL-PS-915	1~30 mW	0.1~20	200-1000
MDL-PS-940	1~60 mW	0.1~80	100-1000
MDL-PS-980	1~50 mW	0.1~80	100-1000
MDL-PS-1060	1~30 mW	0.1~20	100-1000
MDL-PS-1064	1~30 mW	0.1~20	100-1000

Dimensions

Laser

191(L)×100(W) ×58(H) mm³, 1.2kg

Optional Power Supply (100-240VAC)

121 (L) ×50(W) ×31 (H) mm³, 0.3kg
