Multi-line Laser/ Multi-wavelength Laser |
| |
|
CNI offers
multi-line laser/ multi-wavelength laser
combiner systems in free space and fiber
output, it can combine multiple
wavelengths into one box, with optioal USB
or RS232 control. The wavelengths are
available for UV-Visible-IR
range. This
multi-line lasers can be
widely used for medical,
biomedical, and industrial
application, etc. |
| |
|
◆
Free Space Output |
|
|
|
|
 |
Features
-
Separate laser head and
driver for easy
integration
-
320-1064nm wide range of
wavelengths available
-
2-4 wavelengths can be
combined into one system
(more wavelengths on
request)
-
Customized wavelength
and output power
combinations
-
Free space or MM fiber
output optional
|
|
| |
|
Specifications:
(X
stands for the number of
wavelength, X= II, III, IV) |
|
Model |
MSX-M |
MSX-S |
MSX-N |
MSX-W |
MSX-Z |
|
Power supply |
PSU-M-LED |
RGB-31/
RGB-41 |
|
Number of
combined
wavelengths |
2~4 (Or more on
request) |
|
Output mode |
Free coaxially
output (fiber output
optional) |
|
Available
Wavelength (nm) |
320~1064 |
|
Output power (mW) |
Available for
customized on
request |
|
Power stability
(rms, over 4
hours) |
<1%, <2%, <3%, <5% |
|
Operating mode |
CW, TTL or
analog on
request |
|
Operating
temperature (℃) |
10~35℃ |
|
Power input |
100~240VAC |
|
Cooling method |
Air cooled |
|
Expected
lifetime (hours) |
10000 |
|
Warranty |
1 year |
|
Options: |
-
TTL or
analog
modulation
up to 30kHz
-
AOM
(modulation
up to 1MHz)
-
MM fiber
coupling
(100um, ...,
600um),
SMA905/ FC
connector
optional
-
USB or RS232
control
|
|
|
|
|
|
◆

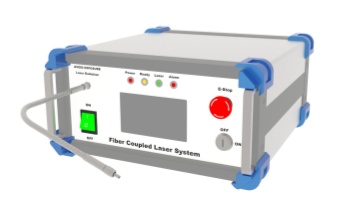

Fiber Coupling Version |
|
|
|
|

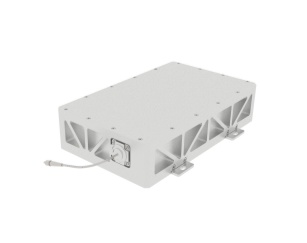

Single Mode Fiber Coupling |
Features
-
Single mode fiber
coupling with stable
output
-
Separate laser head and
driver for easy
integration
-
320-1064nm wide range of
wavelengths available
-
2-4 wavelengths can be
combined into one system
(more wavelengths on
request)
-
Customized wavelength
and output power
combinations
-
Customized size
available
|
|
Model |
MSII-F |
MSIII-F |
MSIV-F |
|
Power supply |
RGB-31/
RGB-41 |
|
Number of
combined
wavelengths |
2~4 (Or more on
request) |
|
Output mode |
Single mode |
|
Fiber connector |
FC |
|
Fiber length |
1m (Other
lengths are
available on
request) |
|
Available
Wavelength (nm) |
320~1064 |
|
Power stability
(rms, over 4
hours) |
<2%, <3%, <5% |
|
Operating mode |
CW, TTL or
analog on
request |
|
Operating
temperature (℃) |
10~35℃ |
|
Power input |
100~240VAC |
|
Cooling method |
Air cooled |
|
Expected
lifetime (hours) |
10000 |
|
Warranty |
1 year |
|
Datasheet |
 |
|
|
|
|
|
|
|
◆
Integrated Electronics: |
|
|
|
|
|
 |
Features
-
Built-in
driver for easy
operation
-
375-1550nm wide range of
wavelengths available
-
2-20 wavelengths can be
combined into one system
-
Customized wavelength
and output power
combinations
-
Customized size
available
|
|

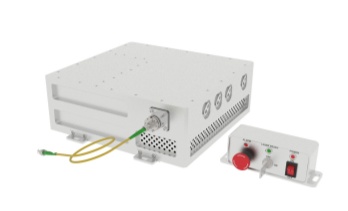

Single Channel |
|
|
|
|
|
Specifications: |
|
Channel type |
Single Channel |
Multi-Channel |
|
Model |
FC-MS |
FC-ML |
Customized model |
FC-MS-CH |
|
Picture |
 |
 |
|
Available
wavelength (nm) |
375~1064 |
375~1550 |
|
Number of
combined
wavelengths |
2~3 |
4~6 |
7~20 |
2~6 |
|
Fiber type |
SM, MM |
SM,
PM |
MM |
|
Fiber core
diameter (μm) |
Customized on
request |
4~9
(SM/ PM) |
200/ 400 (MM) |
|
Fiber connector |
SMA905/ FC |
FC |
SMA905/ FC |
|
Output power |
Customized on
request |
|
Power stability
(rms, over 4
hours) |
<3%, <5% |
<1%,
<2%, <3% |
|
Operating mode |
CW, TTL or
analog on
request |
|
Operating
temperature(℃) |
10~35 |
|
Power input |
100~240VAC |
|
Cooling method |
Air cooled |
|
Expected
lifetime (hours)
|
10000 |
|
Warranty |
1 year |
|
|
|
|
|
|
|
|
◆
Beam Combiner |
|
|
|
|
◆Red/
Green/ Blue
beam
combiner |
|
◆Polarization
beam splitter/ combiner |
|
|
