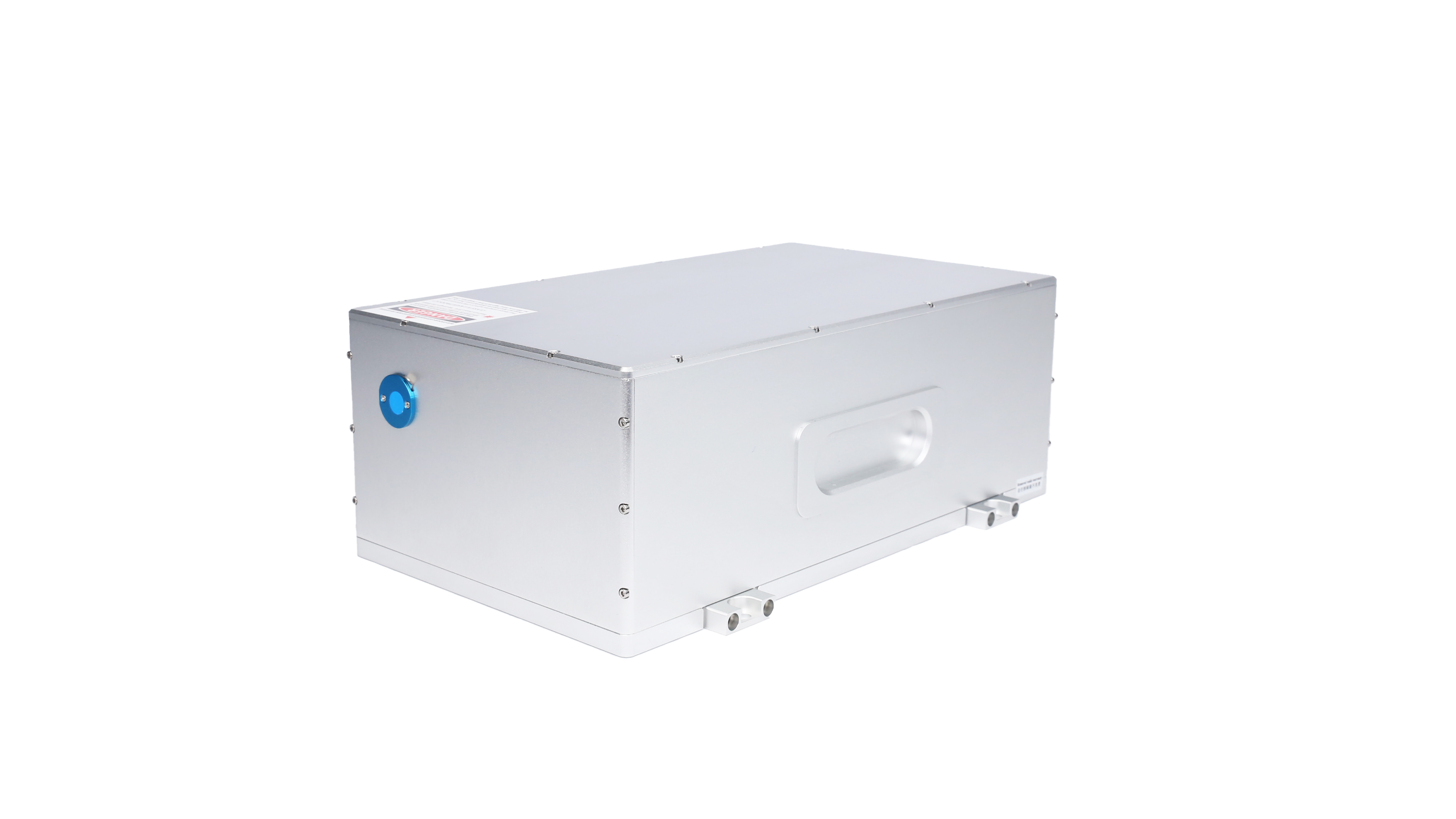

261 nm UV CW Solid State
Laser |
|
|
CNI independently
develops and
manufactures a series of
261 nm all‑solid‑state
CW and
pulsed deep‑UV lasers.
These products feature
low noise, high
stability, narrow
spectral linewidth,
excellent beam quality
and reliable operation.
The CW 261 nm
DUV solid-state laser models offer a
spectral linewidth <
0.003 nm, power
stability < 0.5%, and
output power up to 1.5
W. Air cooling or water
cooling are optional,
enabling 7×24 hour
stable continuous
operation. The system
supports OEM integration
as well as internal and
external
triggering. They
are widely used in
spectral analysis,
bio‑fluorescence
detection, semiconductor
inspection, advanced
scientific research,
precision
measurement , and other
fields.
|
|
|
|
|
Features |
|
Applications |
|
 |
|
|
Linewidth
< 0.003 nm
Noise<
1%
CW
Output
Power
>
1.5 W
Power
Stability < 0.5%
CW/ Pulsed
|
|
Raman Spectroscopy
DNA Sequencing
UV Lithography
Semiconductor Material
Wafer Defect Inspection
Quantum Optics
|
|
|
|
Specifications: |
|
|
|
Low Noise UV Laser |
|
Model |
Central Wavelength
(nm) |
Output
Power
(mW) |
Operating Mode |
Spectral Linewidth
(nm) |
Power Stability
(rms, 4 Hours±3℃) |
Features
|
|
UV-DP-261-LN |
261±1 |
1~800mW |
CW |
<0.003 |
<0.5% |
Noise<1%
(rms, 20Hz-20MHz) |
|
|
|
|
High Stability CW UV Laser |
|
Model |
Central Wavelength
(nm) |
Output
Power
(mW) |
Operating Mode |
Spectral Linewidth
(nm) |
Power Stability
(rms, 4 Hours±3℃) |
Features
|
|
UV-FN-261 |
261±1 |
1~10mW |
CW |
<0.2 |
<2% |
TEM00 |
|
UV-DP-261-A |
261±1 |
10~100mW
|
CW |
<0.2 |
<1% |
|
|
UV-DP-261-B |
261±1 |
100~1500mW |
CW |
<0.2 |
<0.5% |
|
|
|
|
|
Actively
Q-switched UV
Laser |
|
Model |
Central Wavelength
(nm) |
Single Pulse Energy/
Average power (mW) |
Operating mode
(Q-switched) |
Repetition Rate |
Peak Power
(kW) |
Pulse
Width
(ns) |
|
AO-S-261-H |
261±1 |
1~15uJ/ 1~15mW |
Actively |
1 Hz - 1 kHz |
0.1 - 1.6 |
~9 |
|
|
|
|
|
|
|
Measurement
Data |
|
|
|
 |
 |
|
|
|
|
Central Wavelength: 261.263nm
@ UV-DP-261-A |
Output Power
> 1.5 W @ UV-DP-261-B |
|
Linewidth: 24.8 pm
@ UV-DP-261-A |
Power
Stability
<1%
@ UV-DP-261-B |
|
|
|
|
|
|
|
