Deuterium Halogen Sources |
|
|
|
 |
DH-Light
deuterium-halogen light source is a composite
light source that integrates continuous
deuterium and tungsten halogen lamps in one
channel for continuous output from UV-NIR (190
nm-2500 nm), and the deuterium and tungsten
halogen lamps can be controlled individually to
meet a variety of test requirements. DH-Light
deuterium-halogen light source can be used as a
reference light source for absorbance,
transmittance and reflectance measurements, and
can also be used for high precision analytical
measurement instruments, such as liquid
chromatographs, etc. |
|
|
|
|
■
Features: |
|
|
|
● The
light source is continuously output from
190nm-2500nm.
●
Deuterium lamp and tungsten halogen lamp can be
switched separately.
● High
power output of tungsten halogen lamp, output
intensity can be adjusted from 0-100%.
●
Suitable for UV spectrum measurement.
● Be
equipped with efficient heat dissipation system,
long life time and high stability.
●
Standard output interface SMA905/FC (optional). |
|
|
|
■
Specifications: |
|
|
|
Model |
DH-Light |
|
Spectrum Range |
190 nm - 400 nm (Deep
ultraviolet deuterium lamp)
360-2500 nm (Tungsten
halogen lamp) |
|
Dimensions (mm) |
201×150×110 |
|
Weight |
2.5 kg |
|
Energy Consumption |
~78 VA |
|
Power Supply Requirements |
85-250V AC 50-60Hz |
|
Rated Power of Bulb |
25W (Deuterium lamp), 5W
(Tungsten halogen lamp) |
|
Lifetime of Bulb |
～1000h (Deuterium lamp)
～2000 h (Tungsten halogen
lamp) |
|
Connector |
SMA905/ FC |
|
Output Power (1000um fiber) |
171.6uW (Deuterium lamp)
2.36mW (Tungsten halogen
lamp) |
|
Warm-up Time |
10 min |
|
Working Temperature |
5-35°C |
|
|
|
|

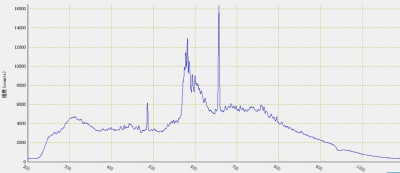

■ Spectrogram |
|
|
|
 |
|
|
|
■
Accessories |
 |
 |
 |
 |
|
|
|
Fiber
|
Length:1m,
2m (optional)
Connector: SMA905
Core diameter: 200μm, 400μm (optional)
|
|
|
4 Way Cuvette
Holder |
Dimensions:
70*70*25mm
Optical path: 10*10mm
Connector: SMA905
It can be used with cuvette for
transmittance and fluorescence
detection.
|
|
|
Optical Signal Collector |
Diameter:
5mm
Focal length: 6mm
Model: L-UV; Wavelength >200nm
Model: L-VIS; Wavelength >350nm
|
|
|
|
|
|
|
|
