Fiber Optic
Spectrometer |
|
|
|
Fiber optic spectrometer with the advantages of modularization
and flexibility of its measuring system is widely used to
measure wavelength and line width of laser, LED and common light
source, can accurately obtain the spectral characteristics of
the light source which is being tested. CNI developed
spectrometers with the characteristics of compact and portable
design, plug and play, easy operation and Spectral Analysis 5.0
software downloads, which are extensively applied on the fields
of scientific research, teaching, industries and many other
applications. CNI can also
customize the wavelength and resolution of the spectrometers
according to different customers’ demands. |
|
|
|
|
 |
 |
|
|
|
|
Infrared Spectrometer
Wood |
|
This is
a two-stage cooled InGaAs detector,
suitable for near-infrared detection and
spectroscopic analysis.
|
|
|
|
|
|
|
|
|
■
Components
& Accessories |
|
 |
 |
 |
|
|
|
TG Series External
Trigger Box |
|
It can make
the spectrometer work synchronously when
the external signal is triggered to
realize the spectrum synchronization
measurement. |
|
|

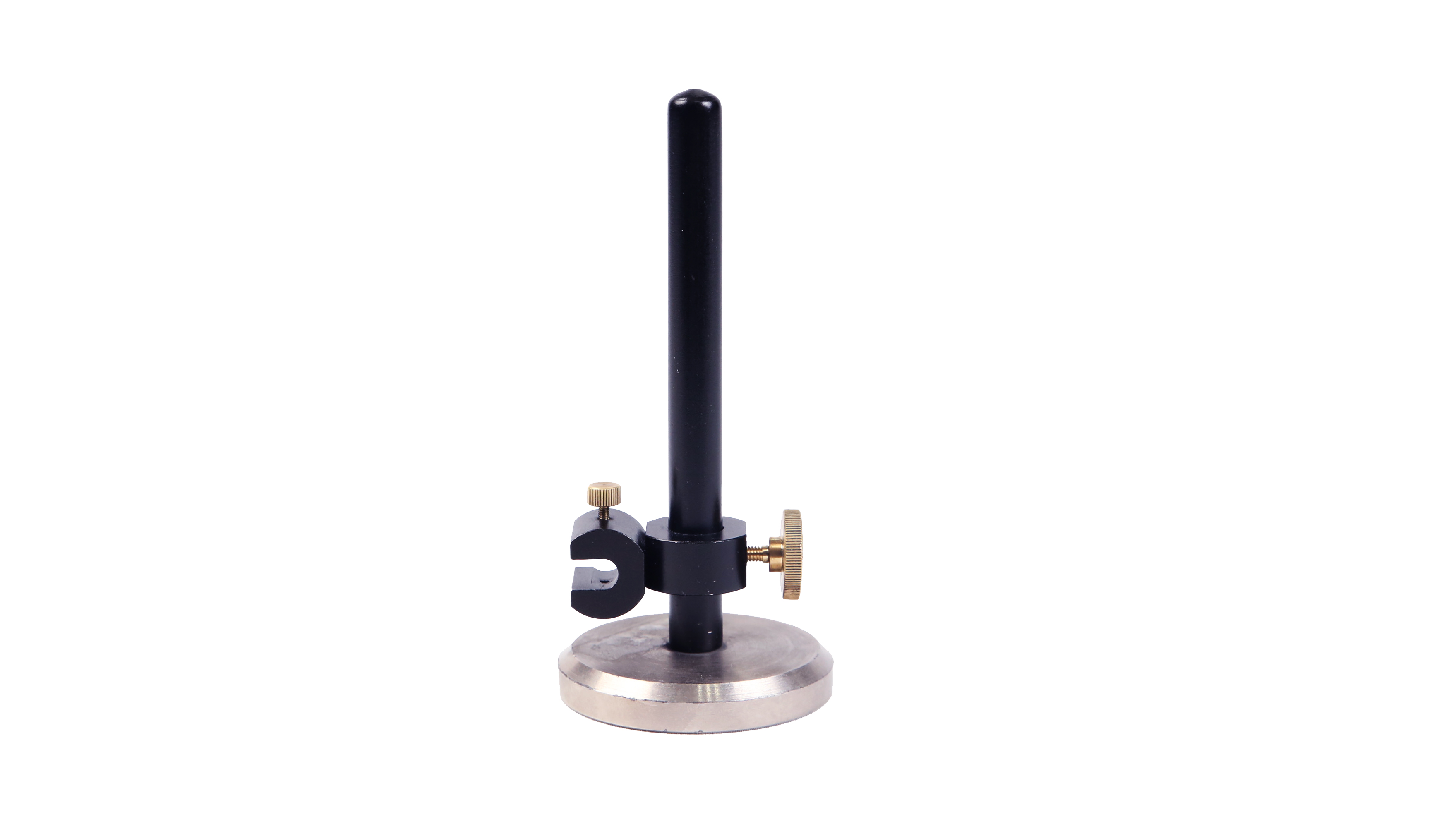

Fiber Holder |
Height:
130mm
Base diameter: 60mm
Customization available
|
|
 |
 |
 |
|

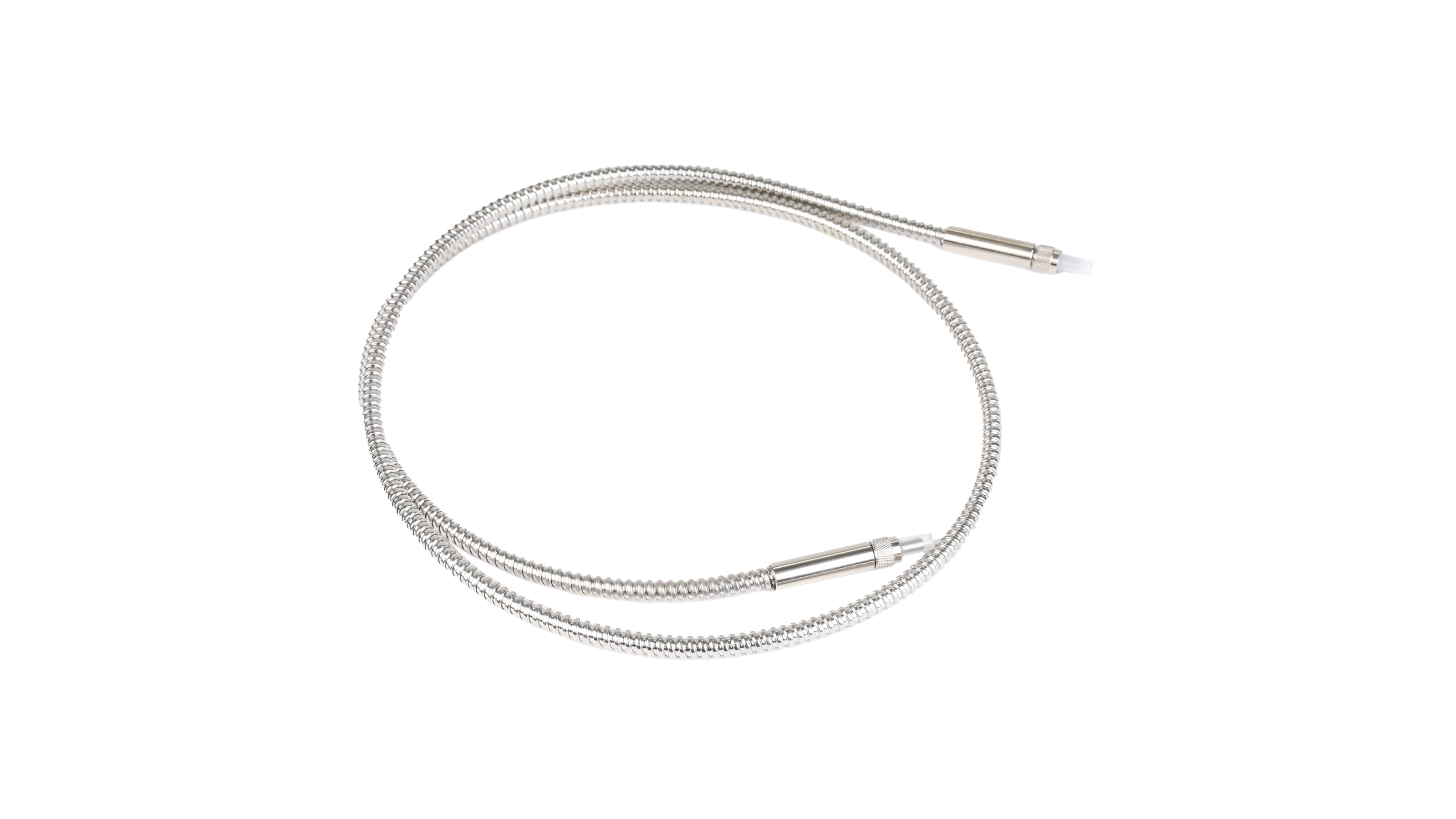

Fiber
|
Length:1m,
2m (optional)
Connector: SMA905
Core diameter: 200μm, 400μm (optional)
|
|
|
Optical Signal Collector |
Diameter:
5mm
Focal length: 6mm
Model: L-UV; Wavelength >200nm
Model: L-VIS; Wavelength >350nm
|
|
|
4-Way Cuvette
Holder |
Dimensions:
70*70*25mm
Optical path: 10*10mm
Connector: SMA905
It can be used with cuvette for
transmittance and fluorescence
detection. |
|
|
|
|
|
■
Sample
Spectrum |
 |
 |
 |
|
Laser spectrum |
LED
spectrum |
Tungsten lamp spectrum |
 |
 |
 |
|
Rare earth fluorescence spectrum |
Acetone Raman spectrum |
Aluminum alloy LIBS spectrum |
|
|
|
|
